Tubular 24 Volt 130 Rpm DC Spur Gear Motor 20 Watts OEM ODM

Product Categories
Wenzhou Tyhe Motor Co., Ltd.
Contact Now

Tubular 24 Volt 130 Rpm DC Spur Gear Motor 20 Watts OEM ODM

Brand Name : TYHE

Model Number : TJP37FO

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : 37mm

Voltage : 3-24V

Speed : 60rpm or Customized

Torque : 1.5N.m

Gear material : Powder metallurgy, Steel

Commutation : Brush brushes brushed

Type : Gear Motor, Micro Motor

Usage : Paper dispenser

Keywords : Customizable 37mm Diameter Tubular Motor 20watts 24 Volt 130 Rpm Brushed Dc Gear Motor

Contact Now

Products Description

Customizable 37mm Diameter Tubular Motor 20watts 24 Volt 130 Rpm Brushed Dc Gear Motor

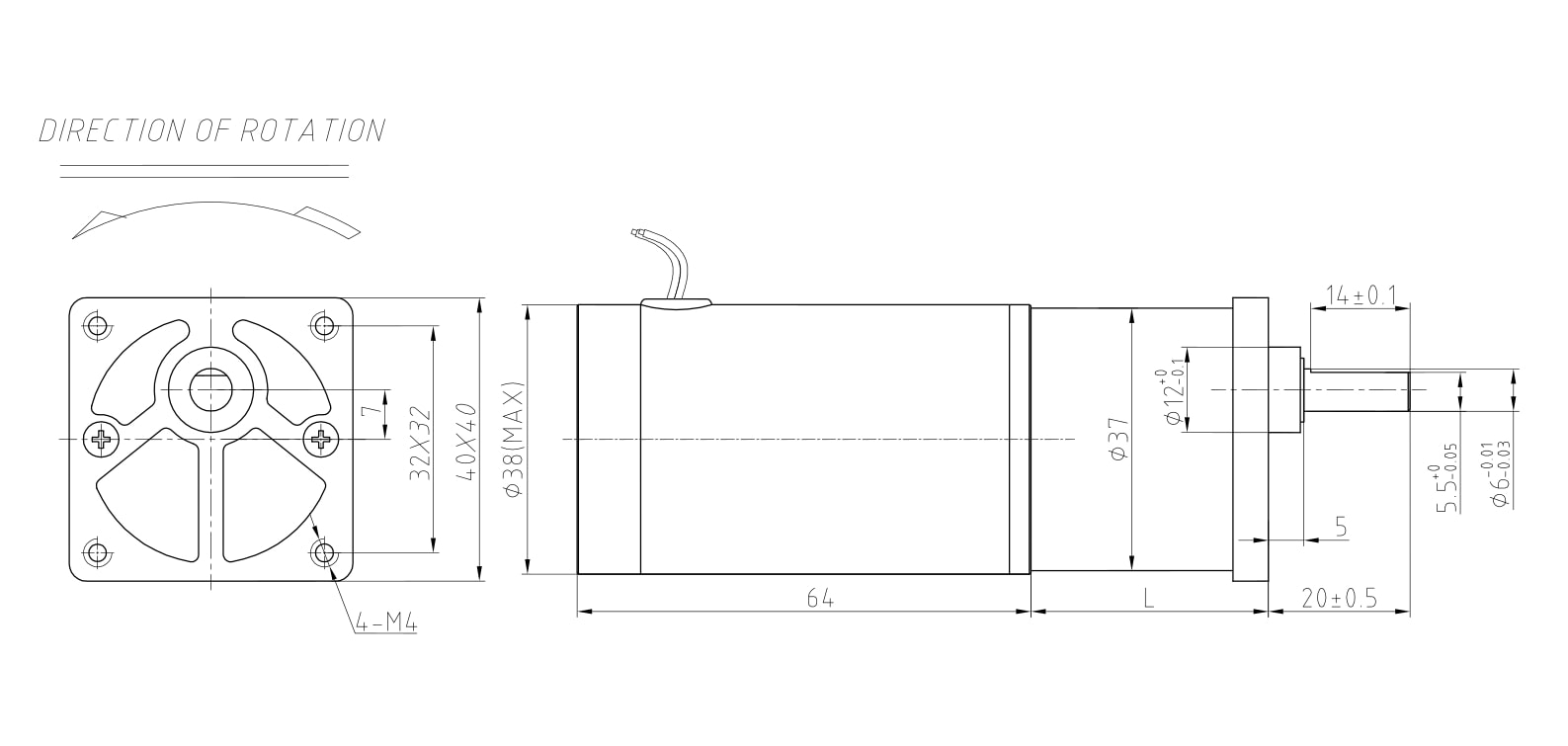

2D drawing

Tubular 24 Volt 130 Rpm DC Spur Gear Motor 20 Watts OEM ODM


Tubular 24 Volt 130 Rpm DC Spur Gear Motor 20 Watts OEM ODM

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
ZY3864 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 439.0 5.95 129.52 388.56 487.8 6.68 130.85 392.54
25.5 73 11.7 307.7 5.37 166.55 499.65 341.9 6.02 168.26 504.77
25.5 73 14.7 244.9 5.37 209.25 627.76 272.1 6.02 211.40 634.20
25.5 73 19.1 188.5 5.37 271.89 815.67 209.4 6.02 274.68 824.03
27.5 65.6 27.2 132.4 4.82 347.94 1043.83 147.1 5.41 351.51 1054.53
27.5 65.6 34.4 104.7 4.82 440.04 1320.13 116.3 5.41 444.56 1333.67
27.5 65.6 44.5 80.9 4.82 569.24 1707.73 89.9 5.41 575.08 1725.25
29.5 59 63.5 56.7 4.34 730.57 2191.70 63.0 4.87 738.06 2214.18
29.5 59 80.3 44.8 4.34 923.85 2500.00 49.8 4.87 933.33 2500.00
29.5 59 104.0 34.6 4.34 1196.52 2500.00 38.5 4.87 1208.79 2500.00
32.5 53 148.0 24.3 3.90 1529.58 2500.00 27.0 4.37 1545.27 2500.00
32.5 53 187.0 19.3 3.90 1932.65 2500.00 21.4 4.37 1952.47 2500.00
32.5 53 242.0 14.9 3.90 2500.00 2500.00 16.5 4.37 2500.00 2500.00
35.5 47.8 346.0 10.4 3.51 2500.00 2500.00 11.6 3.94 2500.00 2500.00
35.5 47.8 437.0 8.2 3.51 2500.00 2500.00 9.2 3.94 2500.00 2500.00
35.5 47.8 565.0 6.4 3.51 2500.00 2500.00 7.1 3.94 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 487.8 6.62 129.52 388.56 585.4 10.06 164.06 492.17
25.5 73 11.7 341.9 5.96 166.55 499.65 410.3 9.06 210.96 632.89
25.5 73 14.7 272.1 5.96 209.25 627.76 326.5 9.06 265.06 795.17
25.5 73 19.1 209.4 5.96 271.89 815.67 251.3 9.06 344.39 1033.18
27.5 65.6 27.2 147.1 5.36 347.94 1043.83 176.5 8.14 440.73 1322.18
27.5 65.6 34.4 116.3 5.36 440.04 1320.13 139.5 8.14 557.39 1672.17
27.5 65.6 44.5 89.9 5.36 569.24 1707.73 107.9 8.14 721.04 2163.13
29.5 59 63.5 63.0 4.82 730.57 2191.70 75.6 7.32 925.39 2500.00
29.5 59 80.3 49.8 4.82 923.85 2500.00 59.8 7.32 1170.21 2500.00
29.5 59 104.0 38.5 4.82 1196.52 2500.00 46.2 7.32 1515.59 2500.00
32.5 53 148.0 27.0 4.33 1529.58 2500.00 32.4 6.58 1937.47 2500.00
32.5 53 187.0 21.4 4.33 1932.65 2500.00 25.7 6.58 2448.02 2500.00
32.5 53 242.0 16.5 4.33 2500.00 2500.00 19.8 6.58 2500.00 2500.00
35.5 47.8 346.0 11.6 3.90 2500.00 2500.00 13.9 5.93 2500.00 2500.00
35.5 47.8 437.0 9.2 3.90 2500.00 2500.00 11.0 5.93 2500.00 2500.00
35.5 47.8 565.0 7.1 3.90 2500.00 2500.00 8.5 5.93 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Tubular 24 Volt 130 Rpm DC Spur Gear Motor 20 Watts OEM ODM

Tubular 24 Volt 130 Rpm DC Spur Gear Motor 20 Watts OEM ODM
