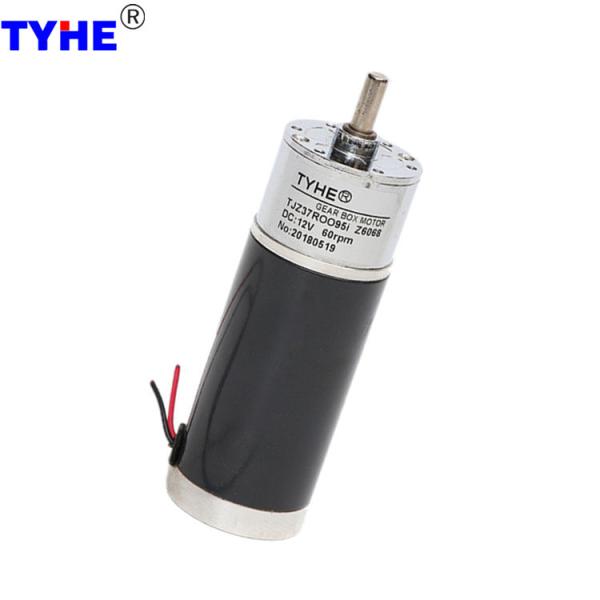

Rotary Small Dc Geared Motor With Encoder 37mm Gearbox 30rpm High Torque

Brand Name : TYHE

Model Number : TJZ37ROO

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : D37mm size

Voltage : 12v-24volt or Customized

Speed : Customized

Torque : 2.50N.m

Gear material : Powder metallurgy, steel

Commutation : Brushes brush

Type : DC gear Motor, Mini Motor

Usage : Paper dispenser,Electric Bicycle

Keywords : Factory Rotary Small 37mm Gear Box 12v 12 Volt 24 V 30rpm High Torque 1nm 25watts 20 Watt Dc Geared Motor With Encoder

Contact Now

Products Description

Factory Rotary Small 37mm Gear Box 12v 12 Volt 24 V 30rpm High Torque 1nm 25watts 20 Watt Dc Geared Motor With Encoder

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37ROO φ37mm TH38S-1 6mm-D cut 380g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3879 12 4500 350 3600 1.23 24.50 9.24 62.83 73.50 7.00
ZY3879 12 5000 400 4000 1.35 24.50 10.26 63.34 73.50 7.50
ZY3879 12 8000 900 6400 2.65 29.70 19.90 62.59 89.10 13.00
ZY3879 24 3500 100 2800 0.48 24.90 7.30 63.37 74.70 3.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 782.6 7.48 91.29 273.86 869.6 8.31 91.29 273.86
22.5 81 5.9 610.2 7.48 117.09 351.26 678.0 8.31 117.09 351.26
22.5 73 8.4 428.6 6.74 150.23 450.70 476.2 7.49 150.23 450.70
22.5 73 10.6 339.6 6.74 189.58 568.74 377.4 7.49 189.58 568.74
22.5 73 13.5 266.7 6.74 241.45 724.34 296.3 7.49 241.45 724.34
24.5 65.6 19.3 186.5 6.06 310.19 930.57 207.3 6.73 310.19 930.57
24.5 65.6 24.4 147.5 6.06 392.16 1176.47 163.9 6.73 392.16 1176.47
24.5 65.6 31.6 113.9 6.06 507.88 1523.63 126.6 6.73 507.88 1523.63
26.5 59 45.0 80.0 5.45 650.48 1951.43 88.9 6.05 650.48 1951.43
26.5 59 57.0 63.2 5.45 823.94 2471.81 70.2 6.05 823.94 2471.81
26.5 59 73.6 48.9 5.45 1063.89 2500.00 54.3 6.05 1063.89 2500.00
29.5 53 105.0 34.3 4.89 1363.43 2500.00 38.1 5.44 1363.43 2500.00
29.5 53 133.0 27.1 4.89 1727.01 2500.00 30.1 5.44 1727.01 2500.00
29.5 53 172.0 20.9 4.89 2233.42 2500.00 23.3 5.44 2233.42 2500.00
32.5 47.8 245.0 14.7 4.41 2500.00 2500.00 16.3 4.91 2500.00 2500.00
32.5 47.8 310.0 11.6 4.41 2500.00 2500.00 12.9 4.91 2500.00 2500.00
32.5 47.8 401.0 9.0 4.41 2500.00 2500.00 10.0 4.91 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-8000RPM Input 24V-3500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1391.3 16.12 110.66 331.99 608.7 5.91 92.78 278.33
22.5 81 5.9 1084.7 16.12 141.94 425.81 474.6 5.91 119.00 356.99
22.5 73 8.4 761.9 14.53 182.12 546.36 333.3 5.33 152.69 458.06
22.5 73 10.6 603.8 14.53 229.82 689.46 264.2 5.33 192.68 578.03
22.5 73 13.5 474.1 14.53 292.69 878.08 207.4 5.33 245.39 736.17
24.5 65.6 19.3 331.6 13.06 376.03 1128.08 145.1 4.79 315.25 945.76
24.5 65.6 24.4 262.3 13.06 475.39 1426.17 114.8 4.79 398.56 1195.68
24.5 65.6 31.6 202.5 13.06 615.67 1847.01 88.6 4.79 516.17 1548.50
26.5 59 45.0 142.2 11.74 788.54 2365.61 62.2 4.31 661.10 1983.29
26.5 59 57.0 112.3 11.74 998.81 2500.00 49.1 4.31 837.39 2500.00
26.5 59 73.6 87.0 11.74 1289.69 2500.00 38.0 4.31 1081.26 2500.00
29.5 53 105.0 61.0 10.55 1652.81 2500.00 26.7 3.87 1385.69 2500.00
29.5 53 133.0 48.1 10.55 2093.55 2500.00 21.1 3.87 1755.20 2500.00
29.5 53 172.0 37.2 10.55 2500.00 2500.00 16.3 3.87 2269.88 2500.00
32.5 47.8 245.0 26.1 9.51 2500.00 2500.00 11.4 3.49 2500.00 2500.00
32.5 47.8 310.0 20.6 9.51 2500.00 2500.00 9.0 3.49 2500.00 2500.00
32.5 47.8 401.0 16.0 9.51 2500.00 2500.00 7.0 3.49 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Rotary Small Dc Geared Motor With Encoder 37mm Gearbox 30rpm High Torque

Rotary Small Dc Geared Motor With Encoder 37mm Gearbox 30rpm High Torque
